The Optronics Armored Jumper retains all the features of standard jumpers, but it is much stronger. With stainless steel tube inside the outer jacket to protect the central unit of the cable, the Armored Jumper is ideal to use in harsh environment. It is flexible but extreme resistant, anti-rodent and able to bend without being broken.
Features
- Resist damage by improper twist
- Resistance of pressure and rodent bite
- Fibers offers low insertion loss once joined to connector
- 1.6mm and 2mm Simplex / Duplex
- Fibers offers low insertion loss once joined to connector
- IEEE 802.3u, IEC 60794, TIA/EIA-568.B.3 compliant
- 50/125µm Multi Mode, 62.5/125µm Single Mode, 3mm Simplex
- Stainless steel tube and Kevlar® inside the outer jacket
- Additional durability and protection as well as light weight.
- Different type of terminations SC to ST, LC to FC, etc.
- Up to 32,81ft length (larger length custom cable available upon request)
- emperature range -20°C up to +85°C
 |
|
|
|
|
|
|
Item: OPJULCPSCPYYS0010RA3
|
|
|
|
|

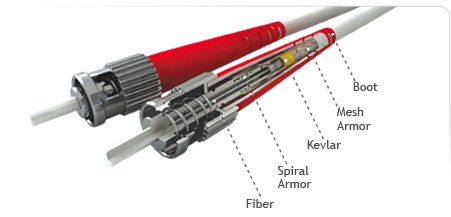

The Armored Jumper has a double armor and a kevlar layer which make it so resistant. |
|
 |
|
 |
|
|

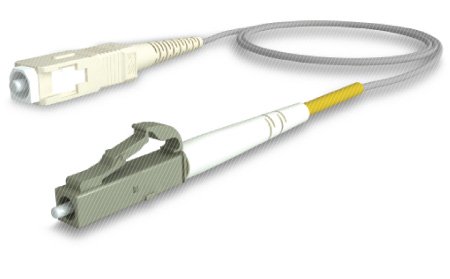

The Optronics Armored Jumper is available for any kind of configurations you need. |
|
|
|
|
 |
|
|
|
 |
| About Connectors |
|
|  |  |  |  |  |
|
|
| Fastening | Threaded coupling | Bayonet fitting | Push-pull | Plug-in | Push-pull |
| Body | Metallic | Metallic | Plastic | Plastic | Plastic |
| Ferrule | Ceramic | Ceramic | Ceramic | Ceramic | Ceramic |
| Ferrule diameter | 2.5 mm | 2.5 mm | 2.5 mm | 1.5 mm |
1.5 mm |
| Polish | PC/UPC/APC |
PC/UPC | PC/UPC/APC |
PC/UPC |
PC/UPC |
| Ferrule tolerance |
125.0± 1µm |
125.0± 1µm |
125.0± 1µm |
125.0± 1µm |
125.0± 1µm |
| 126.0±1µM MM |
126.0±1µM MM |
126.0±1µM MM |
126.0±1µM MM |
126.0±1µM MM |
| Insertion loss |
<=0.20 dB PC |
<=0.20 dB PC |
<=0.20 dB PC |
<=0.20 dB PC |
<=0.20 dBUPC |
| <=0.30 dB UPC |
<=0.30 dB UPC |
<=0.30 dB UPC |
<=0.30 dB UPC |
<=0.30 dB UPC |
| <=0.45 dB APC |
|
<=0.45 dB APC |
|
|
| Return loss |
<=0.45 dB PC |
<=0.45 dB PC |
<=0.45 dB UPC |
<=0.45 dB UPC |
<=0.45 dB UPC |
| <=0.50 dB APC |
|
<=0.50 dB APC |
|
|
| Temperature |
-40°C to 85°C |
-40°C to 85°C |
-40°C to 85°C |
-40°C to 85°C |
-40°C to 85°C |
| Durability |
± 1db 500 Insertions | ± 1db 500 Insertions | ± 1db 500 Insertions | ± 1db 500 Insertions |
± 1db 500 Insertions |
| Boot color |
Black PC
Aqua 10G
Blue UPC
Green APC
| Black PC
Aqua 10G
Yellow UPC
| Beige PC
Aqua 10G
Blue UPC
Green APC
| White PC
Aqua 10G
White UPC
|
Black PC
Blue UPC
|
|
|
 |
|
| Armored Jumpers Specifications |
|
| Norms and Standards |
Telcordia GR-326, IEEE 802.3u/802.3x/802.3z/802.3j, IEC 60794, TIA/EIA-568.B.3 |
| Fiber Jacket | Color | Multimode: gray |
Single mode: blue |
|
| Diameter |
3mm ± 0.05mm |
| Thickness | 0.80mm ± 0.80mm |
| Temperature | -20°C up to 85°C |
| Fiber optic | Core diameter | Fiber | Value |
9/125µm,
50/125µm,
62.5/125µm |
± 0.70mm |
| Cladding diameter |
125.0 ± 2.0µm |
| Core concentricity |
<=1.5µm |
| Cladding concentricity | <=1.0% |
| Wavelength | Multimode: |
850 nm |
1300 nm |
| Single mode: |
1310 nm |
1150 nm |
| Maximum value | dB/Km | <=0.03 |
<=0.02 |
| Recommended Light source | Multimode: | LED o VCSEL |
| Single mode: | Laser |
|
|
|
|
|
