Fiber Optic


Patch Cables


With the development of multimedia, there is a requirement for broader bandwidth for high definition audio and video applications. The Optronics Multimode 10G Jumpers provide 10 gigabit data transfer speeds in high bandwidth applications, up to 550 meters faster than standard fiber cables.
The 10G Jumpers construction is also designed to support tough usage, high performance interconnections, easy installation, and saving time.

  • Aqua color, Riser available
  • Fibers offers low insertion loss once joined to connector
  • IEEE 802.3u, IEC 60794, TIA/EIA-568.B.3 compliant
  • Telcordia GR-326 and IEEE 802.3u/802.3x/802.3z/802.3j standards tested
  • Enhanced 50/125µm Multi Mode Fiber Optic for 10G transmission.
  • Different type of terminations SC, ST, LC, FC.
  • Up to 32,81ft length (larger length custom cable available upon request)
  • 2mm Simplex / Duplex.
  • Durability and protection as well as light weight.
  • Fibers offers low insertion loss, electric interference immune.
  • Temperature range -20°C up to +85°C

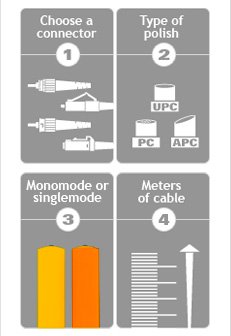

The Optronics Multimode 10 G Jumper is available for any kind of configurations you need.
Find it as simplex or duplex mode.
About Connectors
FasteningThreaded couplingBayonet fittingPush-pullPlug-in
Ferrule diameter2.5 mm2.5 mm2.5 mm1.5 mm
Ferrule tolerance 126.0±1µM MM 126.0±1µM MM 126.0±1µM MM 126.0±1µM MM
Insertion loss <=0.20 dB PC <=0.20 dB PC <=0.20 dB PC <=0.20 dB PC
Temperature -40°C to 85°C -40°C to 85°C -40°C to 85°C -40°C to 85°C
Durability ± 1db 500 Insertions± 1db 500 Insertions± 1db 500 Insertions± 1db 500 Insertions
Boot color Aqua 10GAqua 10G Aqua 10G Aqua 10G
Multi mode 10G Specifications
Norms and Standards Telcordia GR-326, IEEE 802.3u/802.3x/802.3z/802.3j, IEC 60794, TIA/EIA-568.B.3
Fiber JacketColor Multimode: Aqua
Diameter 2mm ± 0.05mm
Thickness0.60mm ± 0.05mm
Temperature -20°C up to 85°C
Fiber optic Core diameterFiberValue
50/125µm ± 0.70mm
Cladding diameter 125.0 ± 2.0µm
Core concentricity <=1.5µm
Cladding concentricity <=1.0%
WavelengthMultimode: 850 nm 1300 nm
Maximum valuedB/Km<=0.03 <=0.02
Recommended Light sourceMultimode:LED o VCSEL
Multimode:VCSEL - México / - México - Spain / - France / - Portugal
