Patch Cables



MULTIMODESINGLE MODE BEND RADIUSARMOREDMULTIMODE 10G MPO

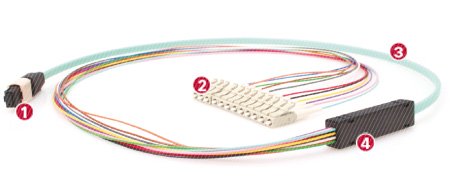

The Optronics MPO Fiber Optic Jumper offers up to 12 times the density of standard connectors, providing significant space and excellent performance. The Optronics MPO Fiber Optic Jumper utilizes precision ferrules with metal guide pins and precise housing dimensions to ensure fiber positioning when mating. Each fiber is 900µm tight buffered and Kevlar® protected to ensure high resistance to pulling and installation.

Features
  • 12 fiber portability through a single cable
  • Low insertion and return loss
  • Electric interference immune
  • Multimode / Single Mode fiber
  • Ribbon cable
  • Telcordia GR-326 and IEEE 802.3u/802.3x/802.3z/802.3j standards tested
  • IEC 60794, TIA/EIA-568.B.3 compliant
  • UL 1666 compliant
  • Temperature range -20°C up to 85°C

Item: OPMPOJU62HH010
MPO Connector
Connectors
(FC, ST, SC, LC, MPO)
Ribbon cable
Break - out
About Connectors
ConectorFCSTSCLC MPO
FasteningThreaded couplingBayonet fittingPush-pullPlug-inPlug-in
BodyMetallicMetallicPlasticPlasticPlastic
FerruleCeramicCeramicCeramicCeramicPlastic
Ferrule diameter2.5 mm2.5 mm2.5 mm1.5 mm Plastic
PolishPC/UPC/APCPC/UPC/APCPC/UPC/APCPC/UPC/APC PC/UPC/APC
Ferrule tolerance 125.0± 1µm SM 125.0± 1µm SM 125.0± 1µm SM 125.0± 1µm SM 125.0± 1µm SM
126.0±µM MM 126.0±µM MM 126.0±µM MM 126.0±µM MM 126.0±µM MM
Insertion loss<=0.20 dB PC<=0.20 dB PC<=0.20 dB PC<=0.20 dB PC <=0.20 dB PC
<=0.30 dB UPC<=0.30 dB UPC<=0.30 dB UPC<=0.30 dB UPC <=0.30 dB UPC
<=0.45 dB APC <=0.45 dB APC  <=0.35 dB UPC
Return loss <=0.45 dB UPC <=0.45 dB UPC <=0.45 dB UPC <=0.45 dB UPC <=0.45 dB UPC
<=0.50 dB APC   <=0.50 dB APC   <=0.60 dB APC
Temperature -40°C to 85°C -40°C to 85°C -40°C to 85°C -40°C to 85°C -40°C to 85°C
Durability ± 1db 500 Insertions ± 1db 500 Insertions ± 1db 500 Insertions± 1db 500 Insertions ± 1db 500 Insertions
Boot colorBlack PC
Aqua 10G
Blue UPC
Green APC		Black PC
Aqua 10G
Yello UPC		Black PC
Aqua 10G
Blue UPC
Green APC		White PC
Aqua 10G
White UPC		 Black PC
PC/UPC/APC
Bend Radius Jumpers Specifications
Norms and Standards Telcordia GR-326, IEEE 802.3u/802.3x/802.3z/802.3j, IEC 60794, TIA/EIA-568.B.3
Fiber JacketColorMultimode: Orange
Diameter 3mm ± 0.05mm 2mm ± 0.05mm
Thickness0.80mm ± 0.80mm0.60mm ± 0.50mm
Temperature -20°C up to 85°C
Fiber optic Core diameterFiberValue
50/125µm,
50/125µm 10G
62.5/125µm
9/125µm 		± 0.70mm
Cladding diameter 125.0 ± 2.0µm
Core concentricity <=1.5µm
Cladding concentricity<=1.0%
WavelengthMultimode: 850 nm 1300 nm
Single mode: 1310 nm 1150 nm
Maximum valuedB/Km<=0.03 <=0.02
Recommended Light sourceMultimode:LED o VCSEL
Single mode:Laser
