Fiber Optic



Patch Cables



MULTIMODESINGLE MODE BEND RADIUSARMOREDMULTIMODE 10G MPO

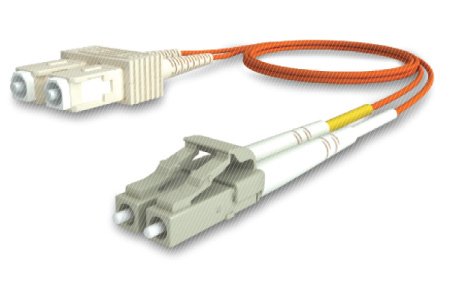

The Optronics Multimode Jumper construction performs the reliability needed in today s data networks. The Optronics jumpers are designed to support tough usage, high performance interconnections, easy installation, and saving of time.

Features
  • Different type of terminations SC to ST, LC to FC, etc.
  • Up to 32,81ft length (larger length custom cable available upon request)
  • ANSI/TIA/EIA-568.B.3 compliant
  • 50/125µm, 62.5/125µm Multimode Riser
  • 1.6mm, 2mm, and 3mm Simplex / Duplex
  • IEEE 802.3u, IEC 60794, TIA/EIA-568.B.3 compliant
  • Electric interference immune
  • Fibers offers low insertion loss once joined to connector
  • Telcordia GR-326 tested
  • Lab connectorized, each jumpers includes a quality certificate to state measuring standards
  • Temperature range -20°C up to +85

Item: OPJUSTPSTPYYD0010RIX

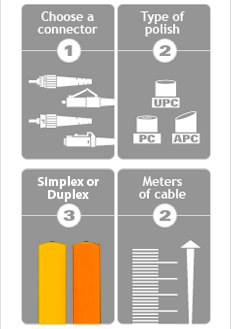

The Optronics Multimode Jumper is available for any kind of configurations you need.
Multimode Signal Wavelength
About Connectors
ConectorFCSTSCLCMUMTRJ
Fastening Threaded coupling Bayonet fitting Push-pull Plug-in Push-pullPlug-in
Body Metallic Metallic Plastic Plastic Plastic Plastic
Ferrule Ceramic Ceramic Ceramic Ceramic Ceramic Plastic
Ferrule diameter 2.5 mm 2.5 mm 2.5 mm 1.5 mm 1.5 mm Plastic
Polish PC PC PC PC PC PC
Ferrule tolerance 126.0± 1µm 126.0± 1µm 126.0± 1µm 126.0± 1µm 126.0± 1µm 126.0± 1µm
Insertion loss <=0.20 dB PC <=0.20 dB PC <=0.20 dB PC <=0.20 dB PC <=0.20 dB PC <=0.20 dB PC
Temperature -40°C to 85°C -40°C to 85°C -40°C to 85°C -40°C to 85°C -40°C to 85°C -40°C to 85°C
Durability ± 1db 500 Insertions ± 1db 500 Insertions ± 1db 500 Insertions ± 1db 500 Insertions ± 1db 500 Insertions ± 1db 500 Insertions
Boot color Black PC Black PC Black PC Black PC Black PC Black PC
Multimode Jumpers Specifications
Norms and Standards Telcordia GR-326, IEEE 802.3u/802.3x/802.3z/802.3j, IEC 60794, TIA/EIA-568.B.3
Fiber Jacket Color Single mode: yellow
Diameter 3mm ± 0.05mm 2mm ± 0.05mm 1.6mm ± 0.05mm
Thickness 0.80mm ± 0.80mm 0.60mm ± 0.50mm 0.6mm ± 0.50mm
Temperature -20°C up to 85°C
Fiber optic Core diameter Fiber Value
9/125µm ± 0.70mm
Cladding diameter 125.0 ± 2.0µm
Core concentricity <=1.5µm
Cladding concentricity<=1.0%
WavelengthSingle mode:1310 nm550 nm
Maximum valuedB/Km<=0.03 <=0.02
Recommended Light sourceSingle mode:Laser
